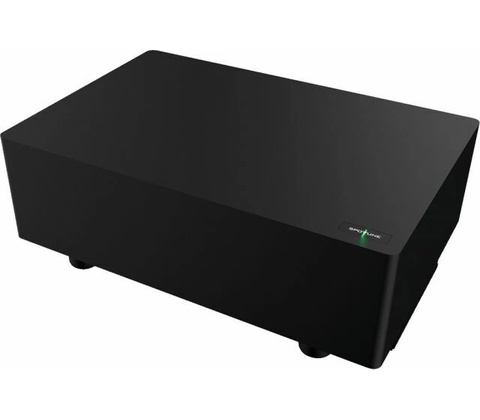

ORG SUB/SW

Subwoofer extension for Spottune speaker systems,

The Spottune SUB subwoofer is used in combination with the Spottune OMNI speakers as an addition to the Spottune speaker system. The subwoofer can be mounted either on the floor, on the wall or on the ceiling, depending on the requirements and spatial conditions. No cables are required for the connection to the central audio streamer Spottune STREAM, simply use plug-and-play.

Spottune wireless smart subwoofer, as an addition to existing Spottune speaker systems for extending the bass reproduction.

• All-in-one smart subwoofer (built-in 200 W amplifier and receiver)
• 25 cm (10") bass speaker/driver of long excursion
• Closed cabinet design for optimum output power and extended bass reproduction
• Easy plug-and-play installation/connection to Spottune audio streamer STREAM
• Reliable and stable audio transmission in the frequency range of 1.9 GHz

Manufacturer information:

Spottune ApS

Nordre Fasanvej 113, 2. Floor 2000 Frederiksberg

Denmark [email protected]

Safety Notes and Warning Messages

The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).

Never adjust the speakers to a very high volume. Permanent high volumes may damage your hearing!

If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.

• Active/passive: active
• Transmission technology: wireless
• Total output power: 300 W
• Power rating (RMS): 200 W, class D amplifier
• Frequency range: 20-200 Hz
• Number of speakers: 1
• Speaker size: 25 cm (10")
• Max. rated SPL: 100 dB
• Radiation angle/beam angle: omnidirectional
• Housing material: plastic
• Colour: black
• Admiss. ambient temp.: 0-40 °C
• Power supply: ˜ 100-240 V/50-60 Hz
• Dimensions: 540 x 200 x 360 mm
• Width: 540 mm
• Height: 200 mm
• Depth: 360 mm
• Weight: 12.65 kg
• Inputs: mains cable
• Other features: audio transmission: UHF band 1.8-1.9 GHz,operating range: approx. 50-100 m, depending on surrounding and place of application
• Packaging dimensions (W x H x L): 0.48 x 0.31 x 0.66 m
• Gross weight: 15.48 kg
• Net weight: 12.65 kg
